Spectrolab-Plus products are suitable for pure gases up to a purity of class 6.0 (99,9999%).

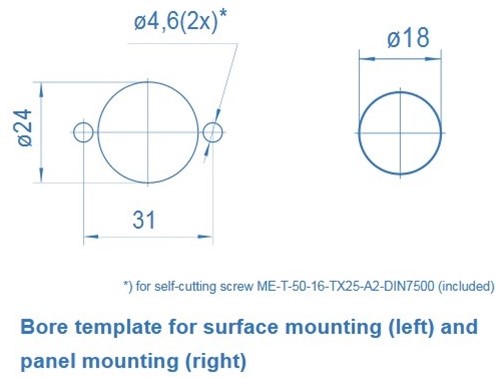

Panel mounted.
With flow-control-valve.
Connections:
Inlet: 1/4" - 18 NPT female
Outlet: 1/4" - 18 NPT female
Also deliverable with colomn for benchmounting or under mounting.
You can list the required medium in the remarks section. The remarks section will appear when finishing your order.
Technical data:
- Material: brass (optional: stainless steel)
- Diaphragm material: stainless steel (Hastelloy C276)
- Outlet pressure: 10 bar, optional: 1½, 5 or 50 bar
- Leak rate: 10-8 bar cm3/s He
- All equipment has been 100% Helium-leak-tested using a mass-spectrometer
