Single column for water, bench mounting
With anti-rotation protection
U-model, 2-way tap

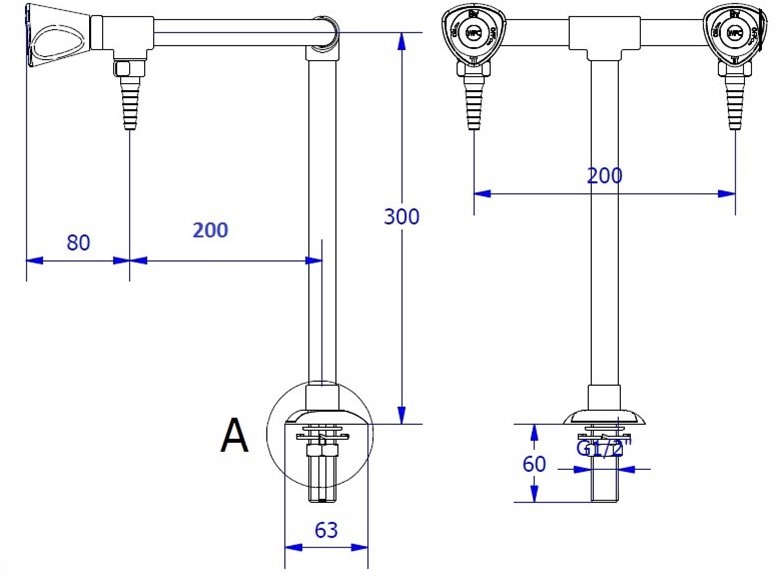

Standout: 200mm
Height: 300mm
Space between the spouts: 200mm
Finishing: matt epoxy powder coating
Colour: lightgrey (RAL-7035)
Handle: PP, light grey (approx. RAL-7035)
Medium indication on flange and handle
Medium: WNC
Technical data:
- Thread: 1/2", 60mm (ISO-228/1)
- Nozzle: 1/2" removable
- Headwork: ceramic (90°-turn)
- Flange: ø63mm
- Water flow: approx. 34 l/min at 3 Bars
- Max working pressure: 10 Bars
- Taphole diametre: ø25mm
Optional:
- Joystick handle
- Ceramic headwork (180°-turn)
- EPDM headwork
- Aerator
- Quick release system
- ST fitting release system
- Integrated flow back prevention valve
- Flow limitator
