Single column for water, bench mounting
With anti-rotation protection

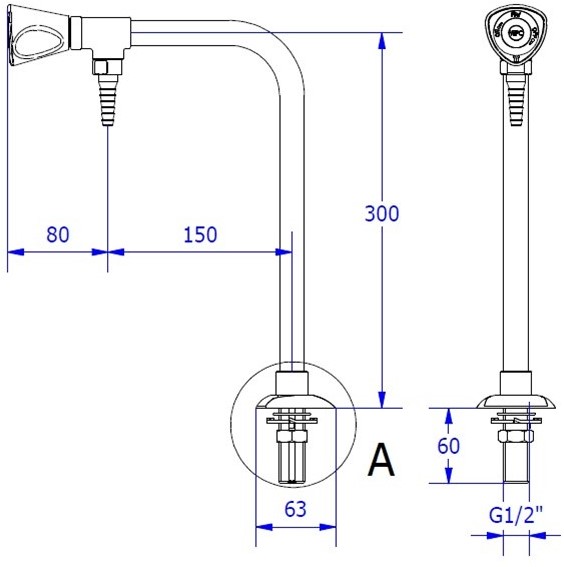

Standout: 150mm
Height: 300mm
Finishing: matt epoxy powder coating
Colour: light grey (RAL-7035)
Handle: PP, light grey (approx. RAL-7035)
Medium indication on flange and handle
Medium: WNC
Taphole diametre: ø25mm
Technical data:
- Thread: 1/2", 60mm (ISO-228/1)
- Nozzle: 1/2" removable
- Headwork: ceramic (90°-turn)
- Flange: ø63mm
- Water flow: approx. 17 l/min at 3 Bars
- Max working pressure: 10 Bars
Optional:
- Joystick handle
- Ceramic headwork (180°-turn)
- EPDM headwork
- Aerator
- Quick release system
- ST fitting release system
- Integrated flow back prevention valve
- Flow limitator
