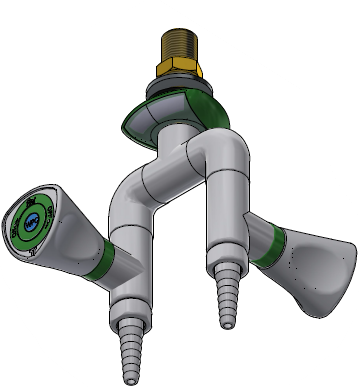

2-way T-tap for water, pendent mounting
Finishing: matt epoxy powder coating
Colour: lightgrey (RAL-7035)
Handle: PP, light grey (approx. RAL-7035)
Medium indication on flange and handle
Medium: WNC

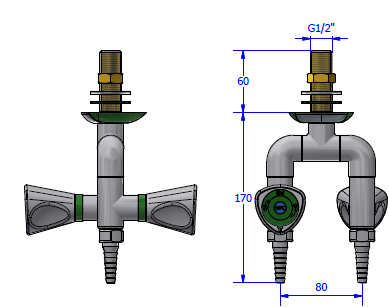

Technical data:
- Thread: 1/2", 60mm (ISO-228/1)
- Nozzle: 1/2" removable
- Distance between the nozzles: 80mm
- Headwork: ceramic (90°-turn)
- Flange: ø63mm
- Water flow: approx. 26 l/min at 3 Bars
- Max working pressure: 10 Bars
Optional:
- Joystick handle
- Ceramic headwork (180°-turn)
- EPDM headwork
- Aerator
- Quick release system
- ST fitting release system
- Integrated flow back prevention valve
- Flow limitator
