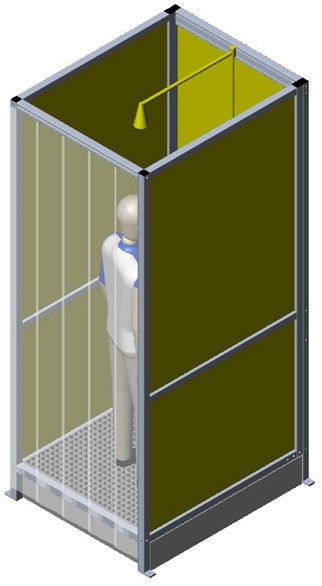

Emergency shower cubicle, with combination shower and drain tray.
Prevents surrounding to get wet when using the shower, and creates the desired privacy in an emergency.
Turnkey unit, easy to place.
Cabin executed in signal yellow; RAL1003.
Bodyshower and eyeshower operate independently.
Complies with EN 15154 and ANSI Z 358.1-2009.
Externally certified by Intertek for norm EN 15154.
Bodyshower
Spintec™ showerhead: impact resistant plastic (ABS); yellow
Ball valve: 1" chrome-plated brass stay-open ball valve, operated by stainless steel pull rod with triangular handle.
Halo™ eyeshower
Bowl: impact-resistant plastic (ABS); yellow
Ball valve: chrome plated brass stay-open ball valve 1/2" with ergonomic stainless steel push handle.
The Aquaduct sprayhead is self draining.
Sprayheads with hinged dust covers, and flowcontrol.
Separate supply and waste pipes.
Pipes and fittings: galvanized steel column with waste outlet and floor flange, all protected with Bradtect yellow coating.
Technical data:
- Cabin: anodized aluminium profiles with Dibond panels, colour signal yellow, finished leakproof
- With PVC strip curtain, galvanised steel grating and PP drain tray.
- Water supply: 1 1/4” BSP female
- Water outlet: ø75mm
- Spintec™ bodyshower 80 l/min at 2 bar
- Halo™ eyeshower 15 l/min at 2 bar
The design of the safety showers is focused on providing efficient first-aid in case of accidents. The safest possible situation is created by a combination of a high-quality product and a professional installation. General information about regulations and installation can be found at general notes regarding installation.
